exacqVision A-Series

Balanced Performance, Reliability and Capacity Video Recorders

All-in-One Hybrid Server and IP Camera Server Solutions

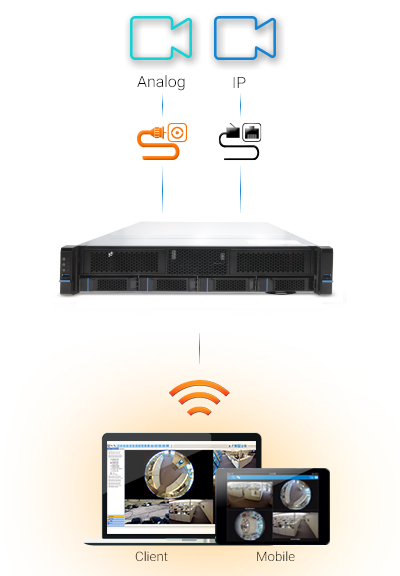

  • Record IP cameras, encoders and analog security cameras
  • Available in hybrid servers and IP camera network video recorder (NVR) models
  • View live and recorded video through free exacqVision client application

Proven Performance

  • Continuously record up to 550 Mbps of video for high concentration of high definition analog and IP cameras
  • Stream up to 1,800 frames per second of live/recorded video to web/mobile clients
  • Stream live/recorded video up to 100 simultaneous PC clients
  • Optional quad network interfaces for fastest archiving or mass client performance

Designed Video Server Reliability

  • Minimize system boot time and failure risk with a high reliability solid-state operating system drive
  • Continuous duty video recording grade hard drives optimized for reduced vibration and heat
  • Uninterrupted operation and video preservation in event of video drive failure via optional RAID 5 and OS drive failure via RAID 1
  • Protects against single power failure with optional 4U redundant power supplies
  • Monitors hardware health in exacqVision client and with email/text notifications

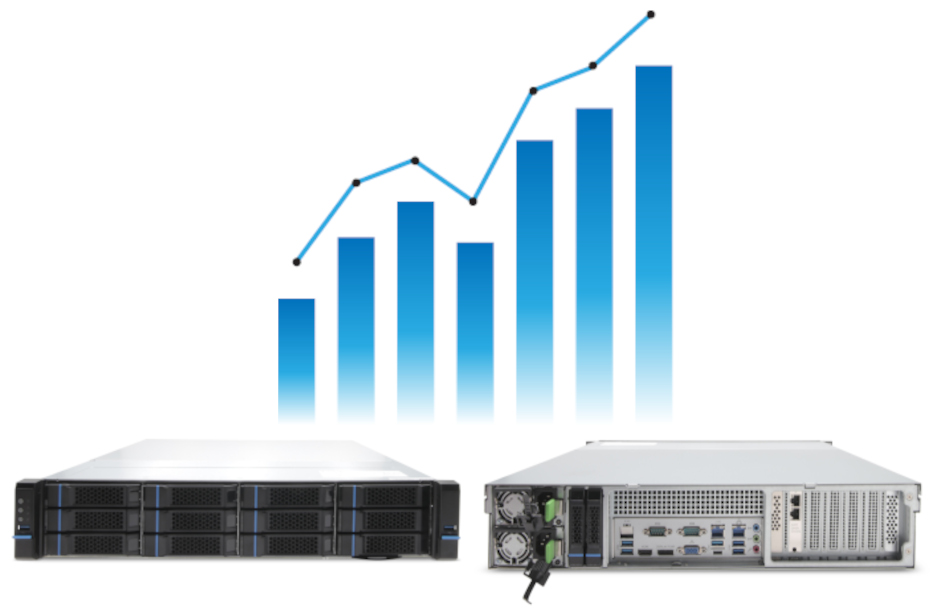

exacqVision A-Series Desktop server

Capacity for Mainstream Recording

  • Record up to 64 IP cameras and 64 analog cameras per video server
  • Includes 4 or 8 IP camera licenses
  • Compatible with thousands of IP camera models from leading manufacturers like Illustra, Axis, Arecont and more
  • Store up to 80TB of video
  • Expandable to over 1.6PB with S-Series networked storage
  • Compatible with all exacqVision video recorders and video management software for maximum scalability

Video Management System (VMS) Software

  • Pre-configured with exacqVision Professional VMS software (standard)
    • EasyConnect – automatically finds, addresses and connects IP cameras
    • Two-way audio
    • Powerful integration with retail, financial and access control systems
    • Conduct investigations on recorded video, audio and data with thumbnail or timeline search
    • Bookmark important video for long-term retention
    • Video multi-streaming to optimize storage utilization and network traffic
  • View video anywhere (standard)
    • Unlimited Windows/Linux/Mac PC clients
    • Live and recorded video from any browser
    • Live and recorded video from most tablets and smartphones
  • Upgrade to exacqVision Enterprise VMS software (optional)
    • VideoPush to remotely control video wall clients
    • Case management to organize critical evidence
    • Active Directory / LDAP for IT administration of users
    • Easy, single-screen administration of cameras, users, storage and notifications

Hosted Certified Software Applications (CSA)

  • Install CSAs such as video analytics, access control software, and point-of-sale software on recorder
  • Save money and rack space with single video security server for retail security or other physical security applications
  • Tested by Exacq to ensure compatibility

3-Year Warranty and Software Subscription Agreement (SSA)

  • Constantly increase VMS features with regular software updates
  • 3 years of unlimited software updates included
  • 3 years of system warranty
  • Add optional annual on-site video recorder repair service to diagnose and resolve issues faster within the continental United States
exacqVision A-Series CSA Certified
Any storage expansion may require additional hardware
Maximum Spare Drives
DT 2U 4U F2 F2 with RAID
2 TB 1 2
4 TB 1 2
6 TB 1 2 5 7 5
8 TB 1 1 4 7 4
10 TB 3 7 3
12 TB 0 0 2 6 2
16 TB 0 0 6 0
18 TB 0
20 TB 0 3 6 3
24 TB 0
28 TB 1
30 TB 0
32 TB 4 0
36 TB 2 2 2
48 TB 0 2 0
64 TB 0 0 0
80 TB 0 0 0
Legend
5000-02000 - 2TB Spare Drive -- RAID
5000-02001 - 2TB Spare Drive -- non-RAID
5000-02002 - 2TB Hot Spare -- F2A w/ RAID only
5000-04000 - 4TB Spare Drive -- RAID
5000-04001 - 4TB Spare Drive -- non-RAID
5000-04002 - 4TB Hot Spare -- F2A w/ RAID only
5000-06000 - 6TB Spare Drive -- RAID
5000-06001 - 6TB Spare Drive -- non-RAID
5000-06002 - 6TB Hot Spare -- F2A w/ RAID only
5000-08000 - 8TB Spare Drive -- RAID
5000-08001 - 8TB Spare Drive -- non-RAID
5000-08002 - 8TB Hot Spare -- F2A w/ RAID only
5000-10000 - 10TB Spare Drive -- RAID
5000-10001 - 10TB Spare Drive -- non-RAID
5000-10002 - 10TB Hot Spare -- F2A w/ RAID only
